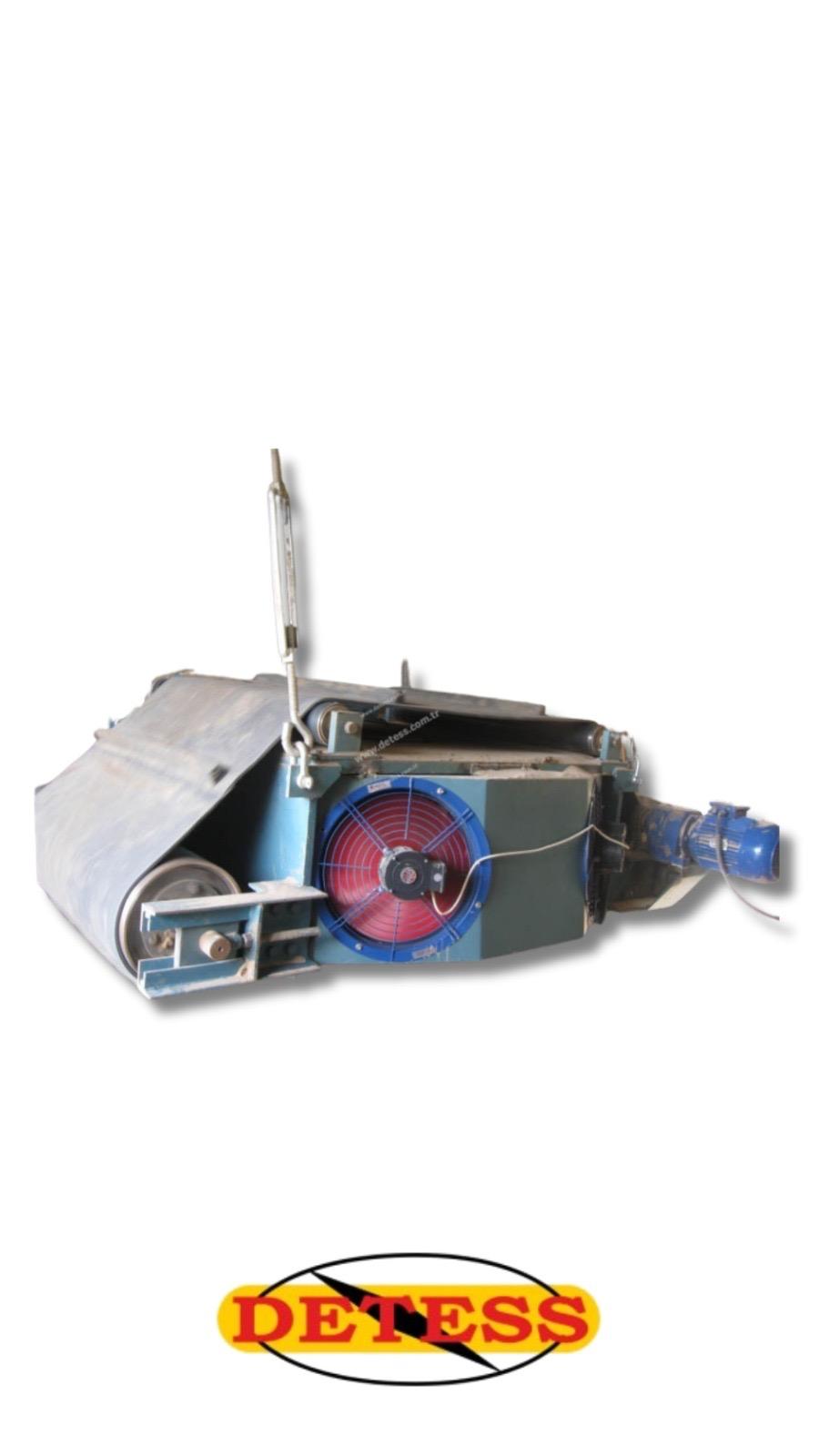

SUSPENDED ELECTROMAGNETS
Suspended electromagnets are used in conveyor systems, especially where the material height exceeds 200 mm.
-
High installation and operating cost
-
In case of power failure or magnet malfunction, magnetic force is lost
-
To prevent this, DETESS offers special automation systems that stop the conveyor, or metal detector integration placed after the magnet
-
Stronger magnetic force compared to permanent magnets
-
Magnet strength is customized based on conveyor belt width and suspension height
Technical Specifications
-
Insulation rating: 120 MΩ under 3000V AC test
-
Protection class: IP 65
-
Coil structure: Varnish-impregnated, oven-cured, fiberglass insulated
-
Cooling oil: Shell Diala B
-
Control panel: IP 65, resistant to dust and moisture
-
Rectifier diodes: Air-cooled and protected against surge currents
